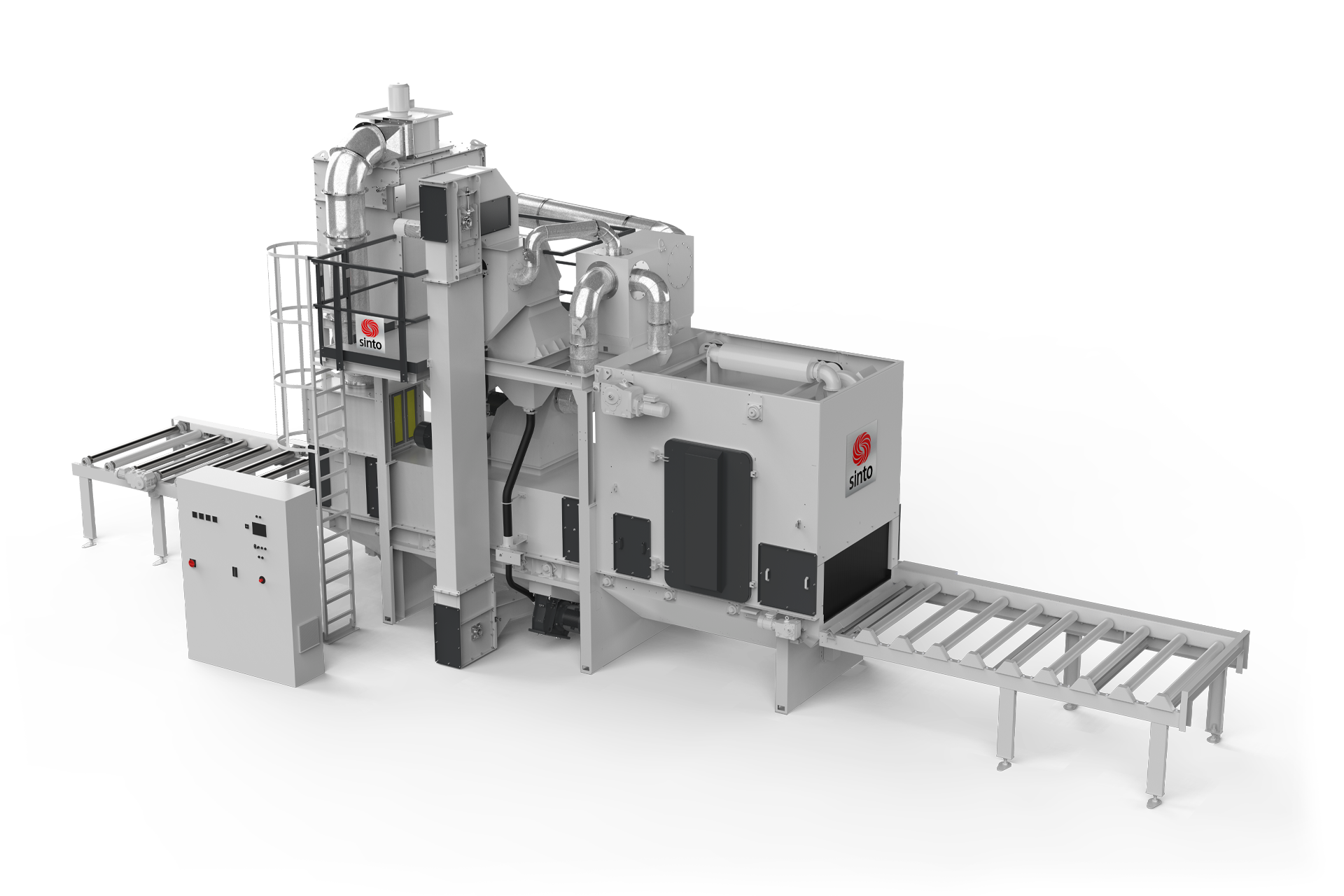

Roller conveyor shot blast machines

Technical data

Possible applications of AGTOS roller conveyor blast machines (type RT)

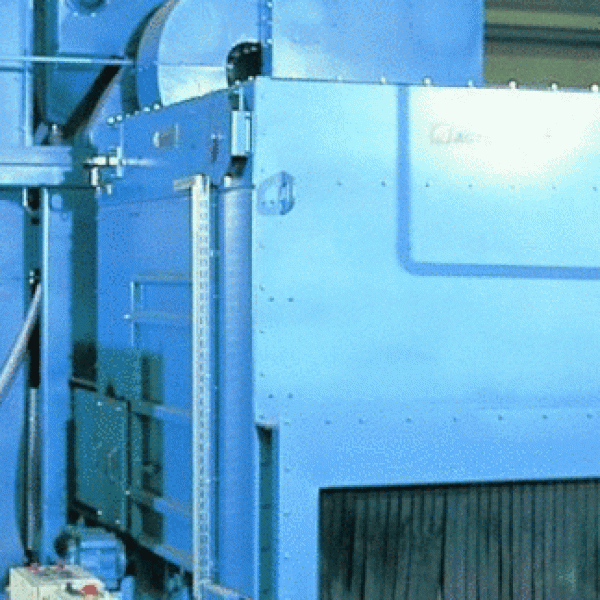

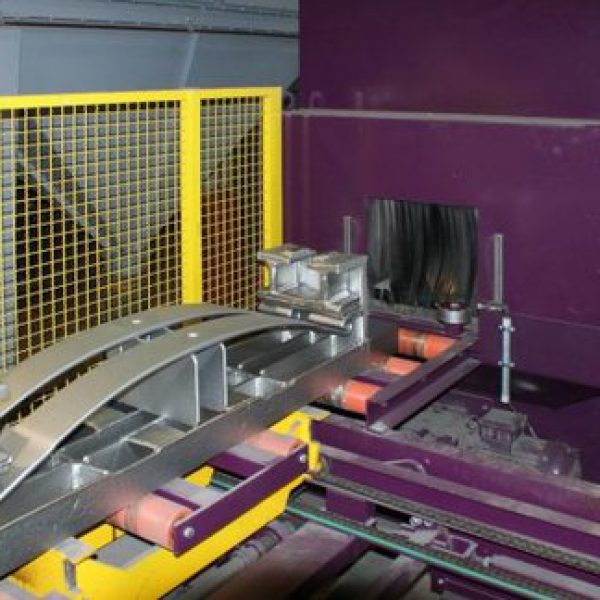

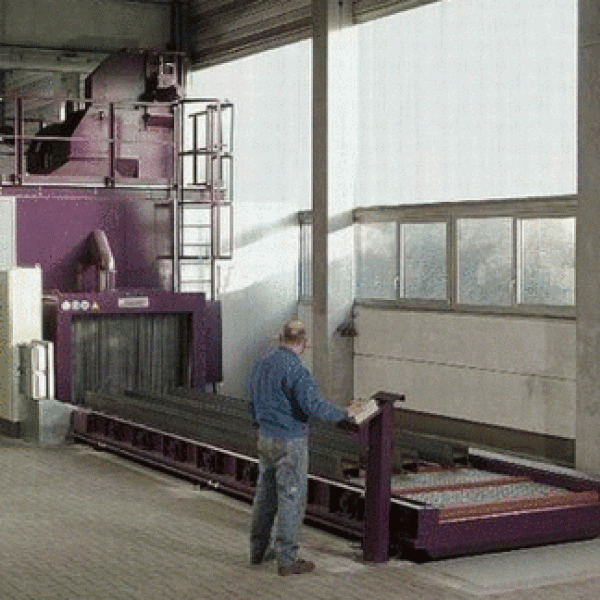

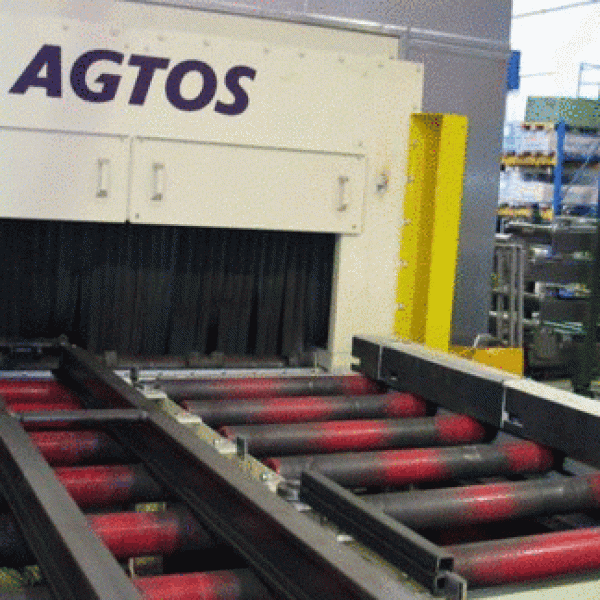

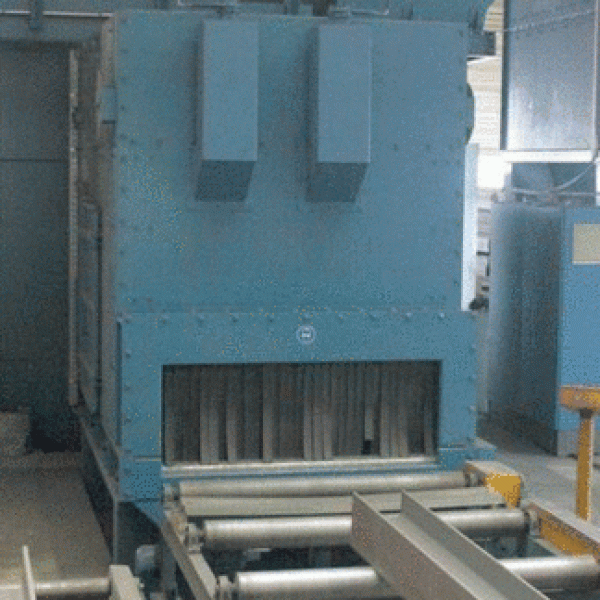

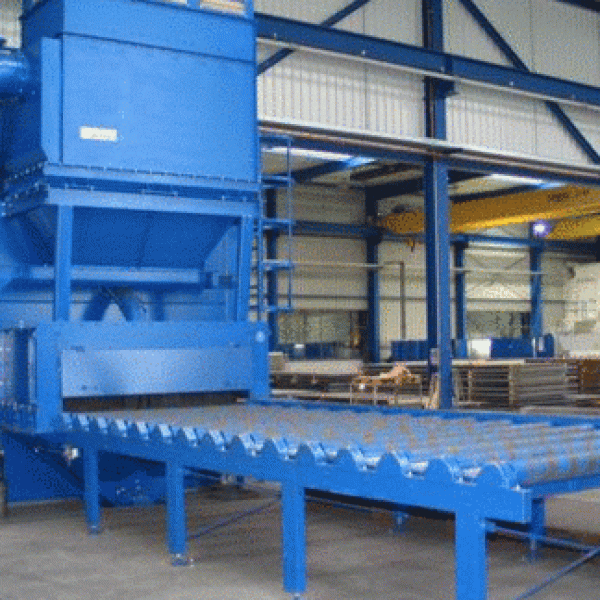

AGTOS roller conveyor blast cleaning systems are ideal for derusting steel beams and descaling profiles and sheet metal. A roller conveyor system, combined with corresponding cross conveyor units, allows individual production stages such as blasting, preservation, sawing and drilling to be interlinked. This ensures a flexible production process and a high material output. Another area of application for the roller conveyor blasting system is the blasting of structures. The turbine arrangement and the throughput openings are precisely matched to geometrically demanding workpieces.

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information

Unblock content Accept required service and unblock content

Technical data

Roller conveyor shot blast machines Product programme

Our standard programme includes roller conveyor blast machines with throughput widths from 500 mm to 3200 mm. We also offer used roller conveyor blast machines, which can be a cost-effective option for production peaks. Regardless of whether you need a new or used roller conveyor blasting system, our systems can be flexibly integrated into production lines and offer customized solutions, e.g. for derusting steel beams or blasting large-format structures. Our advice also includes selecting the right blast media for optimum results.

Type:		RT 05-10	RT10-06	RT15-06	RT15-10	RT21-06	RT26-06	RT26-10	RT32-06	RT32-10	RT36-06	RTXX-XX
Number of high-performance turbines	pcs.	4	4	4	4/8	4	6	8	6	8	8	Nothing suitable? We would be happy to develop a customised solution with you.
Max. workpiece width	mm	500	1000	1500	1500	2100	2600	2600	3200	3200	3600
Max. workpiece height	mm	1000	500	600	1000	600	600	1000	600	1000	600
Throughput speed	m/Min	depending on the blasting task

How it works

Operating sequence for roller conveyor shot blast machines

The diagram on the left shows the path of the workpieces through the AGTOS blasting system. You can count on us to always consider the optimal solution for your workpiece. In doing so, we take into account the factors of time, cost and material. This is how you optimise your production.

The workpieces actuate the switching threshold located in front of the inlet sluice for the automatic blast media supply of the running high-performance turbines. This ensures that blasting only takes place when workpieces are in the blasting area.

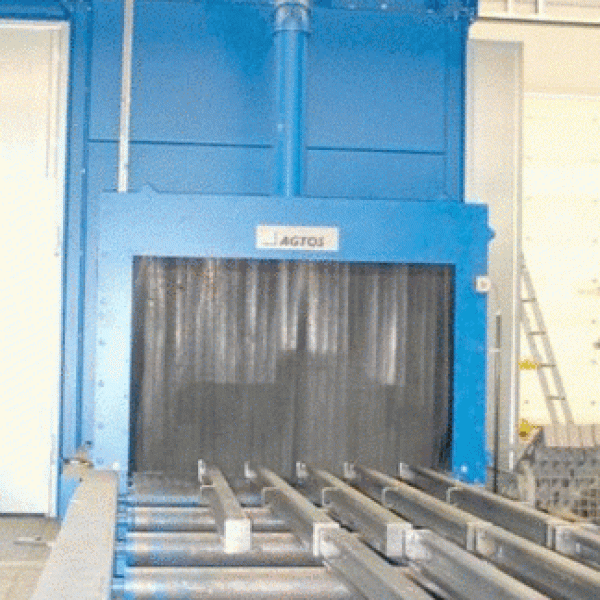

The inlet sluice is equipped with wear-resistant rubber curtains for sealing. After passing through the blast zone, the workpieces are conveyed to the blow-off device. The abrasive remaining on the workpiece surfaces is returned to the abrasive circuit here.

The abrasive keeps circulating and is cleaned to allow continuous use. Via the abrasive dosing device the cleaned abrasives, coming from the abrasive silo, arrives at the high performance turbines.

A fan generates the necessary negative pressure for dust-free operation of the blasting systems. The extracted air is cleaned with a filter system.
