Cast steel

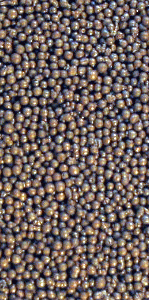

Cast steel, round (low-carbon!)
Low-carbon abrasive is crack-free and therefore more durable and longer-lasting than the standard high-carbon abrasive. Customer trials have shown that the use of low-carbon cast steel abrasive has enabled them to reduce abrasive consumption by more than 20 % in some cases.
Applications:
- Solidification blasting
- Cleaning jets
| Type: | Grit: | Article no: |
|---|---|---|
| S 70 | (0.2 – 0.4 mm) | 4-17501-0071 |
| S 110 | (0.3 – 0.6 mm) | 4-17501-0111 |
| S 170 | (0.5 – 0.8 mm) | 4-17501-0171 |
| S 230 | (0.6 – 0.9 mm) | 4-17501-0231 |
| S 280 | (0.7 – 1.1 mm) | 4-17501-0281 |
| S 330 | (0.8 – 1.2 mm) | 4-17501-0331 |
| S 390 | (1.0 – 1.6 mm) | 4-17501-0391 |
| S 460 | (1.2 – 1.8 mm) | 4-17501-0461 |
| S 550 | (1.5 – 2.2 mm) | 4-17501-0551 |
Cast steel, angular
Applications:
- Cleaning jets
- Rough blasting and matting
- Preparation for coating, painting or enameling
- Type GP (approx. 40 – 50 HRC)
- Type GL (approx. 55 – 60 HRC)
- Type GH (approx. 64 – 68 HRC)
| Type: | Grit: | Article no: |
|---|---|---|
| GP 12 | (1.7 mm) | 4-17502-3012 |
| GP 14 | (1.4 mm) | 4-17502-3014 |
| GP 16 | (1.2 mm) | 4-17502-3016 |
| GP 18 | (1.0 mm) | 4-17502-3018 |
| GP 25 | (0.8 mm) | 4-17502-3025 |
| GP 40 | (0.6 mm) | 4-17502-3040 |
| GP 50 | (0.3 mm) | 4-17502-3050 |
| GP 80 | (0.2 mm) | 4-17502-3080 |
| GP 120 | (0.1 mm) | 4-17502-3120 |
| Type: | Grit: | Article no: |
|---|---|---|
| GP 12 | (1.7 mm) | 4-17502-2012 |
| GP 14 | (1.4 mm) | 4-17502-2014 |
| GP 16 | (1.2 mm) | 4-17502-2016 |
| GP 18 | (1.0 mm) | 4-17502-2018 |
| GP 25 | (0.8 mm) | 4-17502-2025 |
| GP 40 | (0.6 mm) | 4-17502-2040 |
| GP 50 | (0.3 mm) | 4-17502-2050 |
| GP 80 | (0.2 mm) | 4-17502-2080 |
| GP 120 | (0.1 mm) | 4-17502-2120 |
| Type: | Grit: | Article no: |
|---|---|---|
| GP 12 | (1.7 mm) | 4-17502-1012 |
| GP 14 | (1.4 mm) | 4-17502-1014 |
| GP 16 | (1.2 mm) | 4-17502-1016 |
| GP 18 | (1.0 mm) | 4-17502-1018 |
| GP 25 | (0.8 mm) | 4-17502-1025 |
| GP 40 | (0.6 mm) | 4-17502-1040 |
| GP 50 | (0.3 mm) | 4-17502-1050 |
| GP 80 | (0.2 mm) | 4-17502-1080 |
| GP 120 | (0.1 mm) | 4-17502-1120 |
