Blasting systems from AGTOS

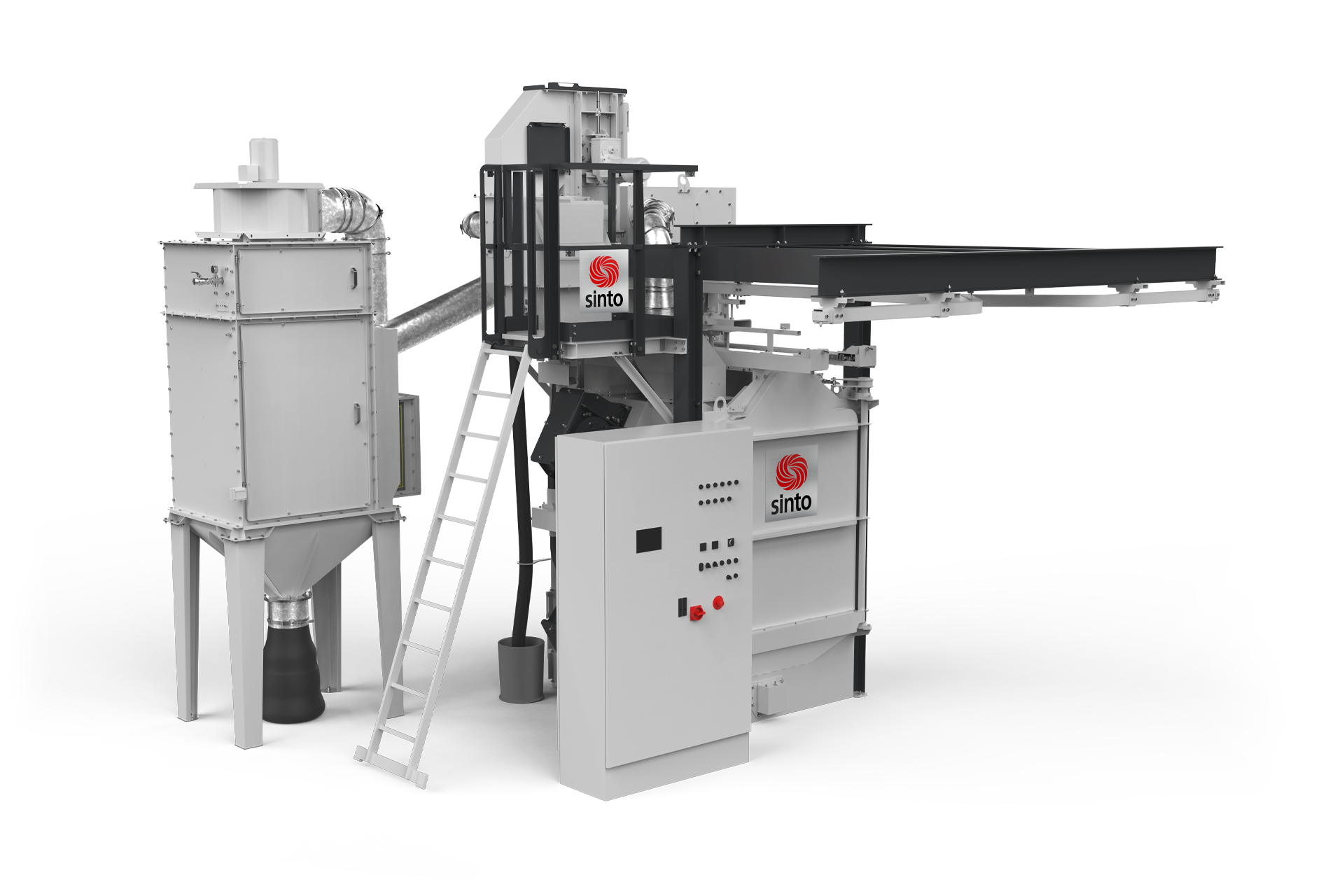

Hanger-type blast machine

Technical data

Possible applications of AGTOS hanger-type shot blast machines (type HT)

They are generally offered as batch or continuous systems. However, there are numerous intermediate forms that are orientated towards the rail guidance of the suspension track system. In many cases, different machining processes such as blasting, painting and subsequent drying can be combined with each other using the overhead conveyor system, thereby exploiting enormous rationalisation potential.

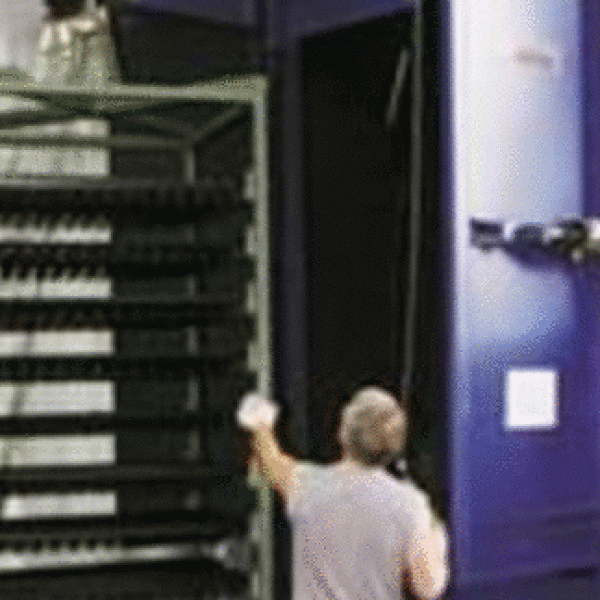

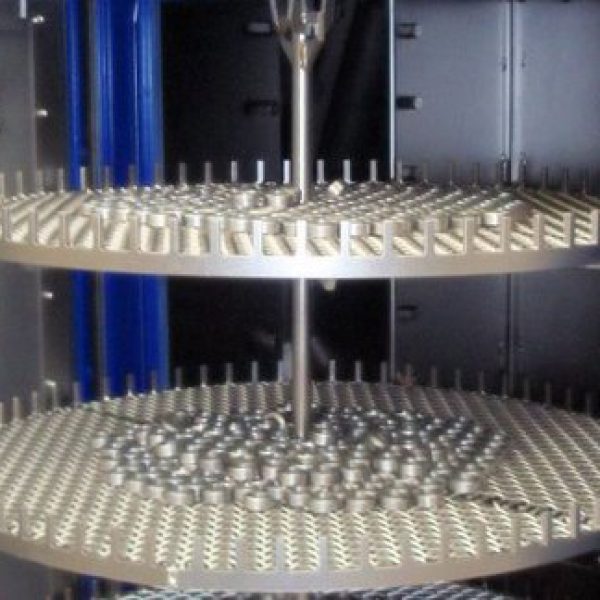

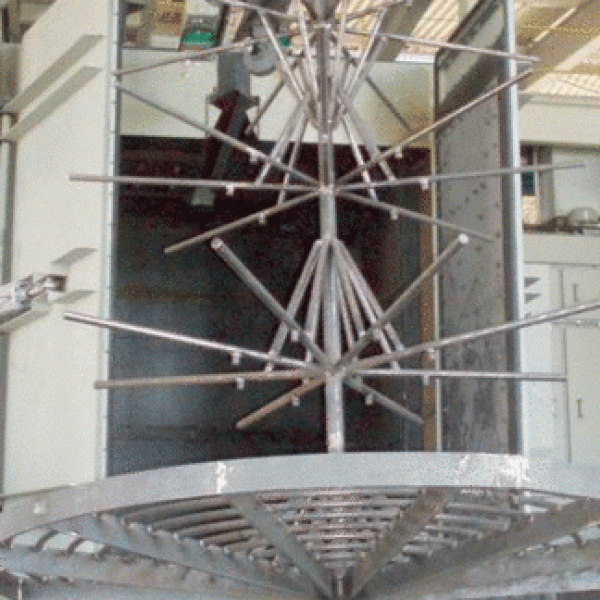

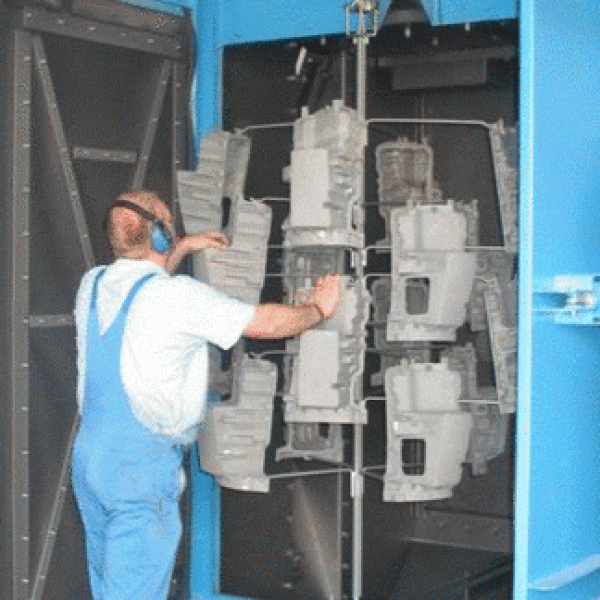

Further variation possibilities arise through the use of different blasting racks with the help of which the workpieces are fed into the machine. In many cases, standard blasting frames with discs, baskets or bars can solve the task. However, the requirements of our customers are always clarified in detail and often lead to a customised solution.

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information
Technical data

Hanger-type shot blast machines Product programme

Our standard programme for hanger-type shot blast machines includes several sizes.

The determination of the suitable machine concept depends, among other things, on the workpieces, the required output and, last but not least, the customer’s ideas regarding an optimised production process.

If the task cannot be solved with a standard machine, we will develop a customised machine concept for you.

Please send us your detailed enquiry.
Our experienced team will be happy to help you.

Type: HT11-13HT13-17HT13-21HT17-17HT17-23HT21-27HT21-30HTXX-XX
Number of high-performance turbinespcs.22/332/3344Nothing suitable?
We would be happy
to develop a customised
solution with you.
Max. Hakenbelastung Kg500 – 2000
Max. workpiece width mm1100130013001700170021002100
Max. workpiece height mm1300170021001700230027003000
How it works

Operating sequence for hanger-type shot blast machines

The diagram on the left shows the path of the workpieces through the AGTOS blasting system. You can count on us to always consider the optimal solution for your workpiece. In doing so, we take into account the factors of time, cost and material. This is how you optimise your production.

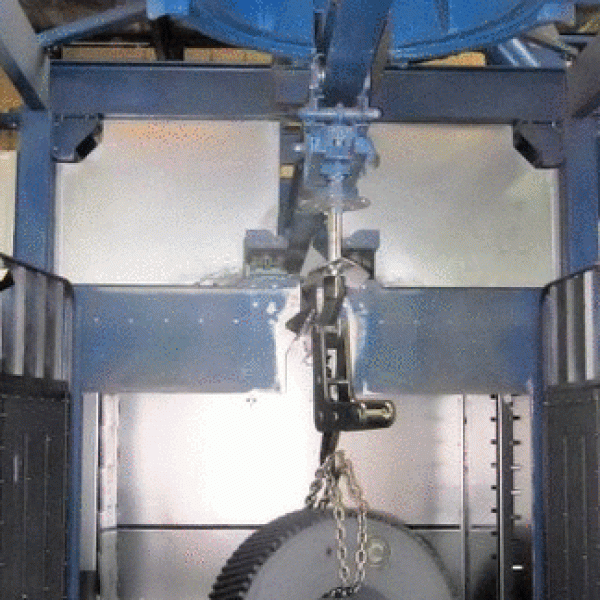

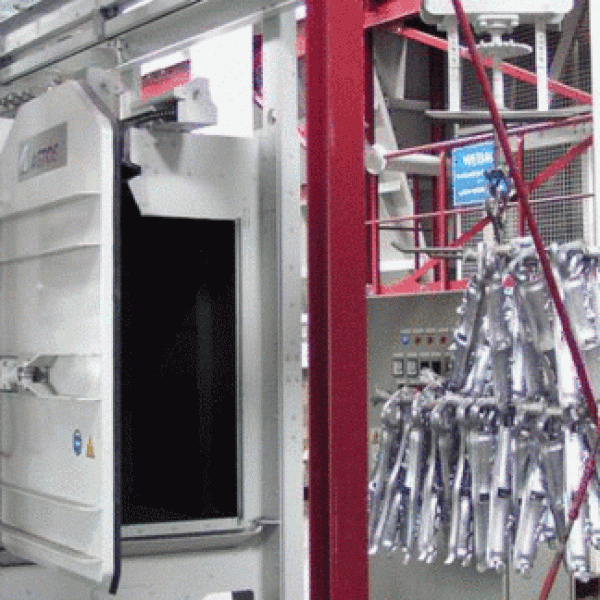

The workpieces are suspended on a blasting rack or directly on the rotating hooks of the trolley and pushed to just in front of the steel machine. An automatic infeed device transports them to the first blasting position.
1

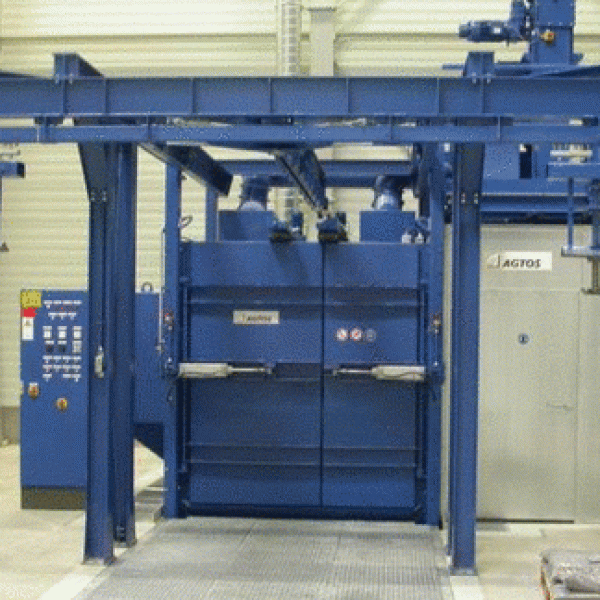

Once the program has started, the machine door is automatically closed and locked electro-pneumatically. The workpieces are blasted in three positions according to the preset blasting time.
2
The abrasive keeps circulating and is cleaned to allow continuous use.
3
Via the abrasive dosing device the cleaned abrasives, coming from the abrasive silo, arrives at the high performance turbines.
4
At the end of the blasting cycle and after the turbines have come to a standstill, the machine door opens automatically and the workpiece hanger returns to its starting position.
5
A fan generates the necessary negative pressure to ensure dust-free operation of the blasting systems. The extracted air is cleaned with a filter system.
6
