Used blast machines
AGTOS produces not only new blast machines but also delivers used blast machines.
Below we offer you used machines which are in our possession under reservation of prior sale. These machines are in good condition. They will be refurbished, retrofitted, modernized and painted according to the customer´s requirements.
Please send us an enquiry for the machine in which you are interested.
If you have to offer a shot-blast machine or a compressed air machine or if you know where such a machine stands, we would always be very glad for your information.
For more information please call us +49-(0)2572-96026-0 or send us a e-mail.

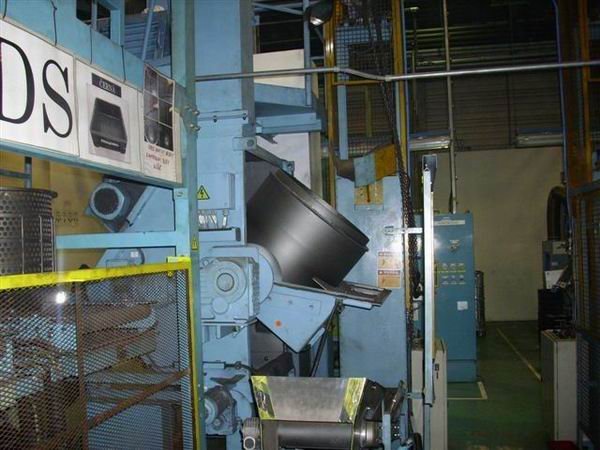

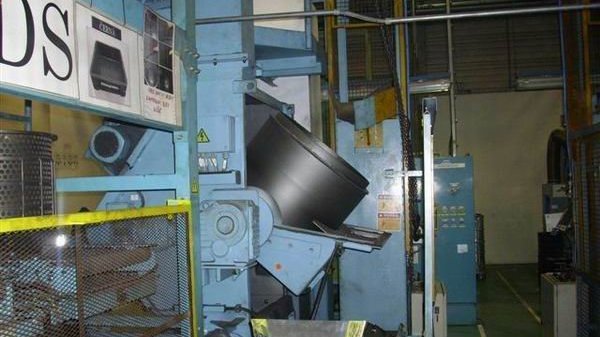

| Machine No. |
08-009 / 180466 |
| OEM |
DISA |
| Type |

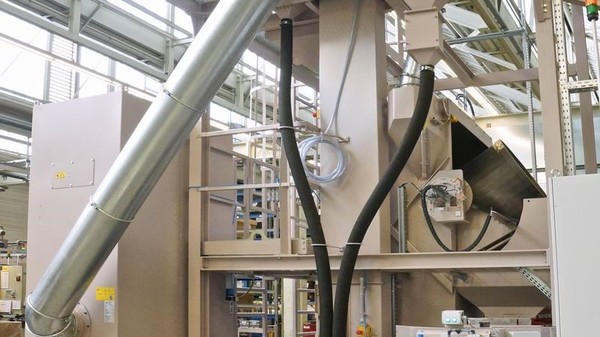

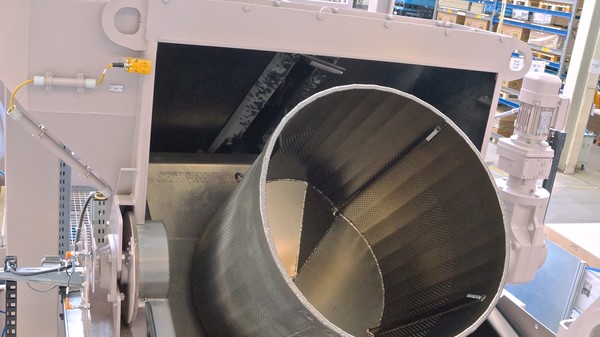

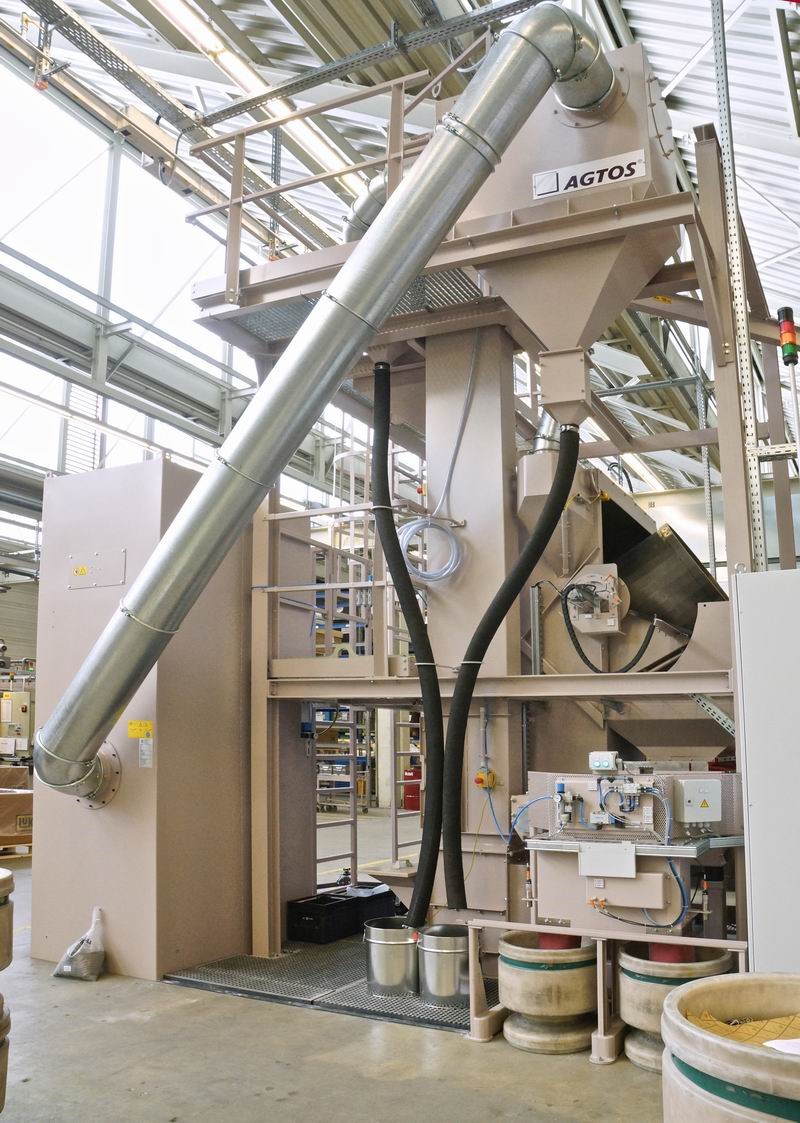

Drum blasting machine |
| Name |
T7-138 |
| Turbines |
1 x AGTOS |
| Cartridge filter |
1 x DISA |
| Volume |
1400m³/hod |
| Age |
2006 |
| Weight workpiece |
10 kg |
| Volume of workpieces |
0,11 m³ |
| Weight workp. total |
200 kg |
| Machine No. |
180616 |
| OEM |
Rump |
| Type |
Diabolo blast machine |
| Name |
10-R-S-200 |
| Turbines |
2 x, 15 kW |
| Cartridge filter |
Torit Patronenfilter |
| Volume |
4.500 m³/h |
| Age |
1999 |
| Weight workpiece |
5-150 kg |
| Other details |
Operating voltage: 400 V /50 Hz
Workpiece outer diameter: max. 60-200 mm
Workpiece length: max. 500-4000 mm, can also be extended
Tool steel full lining |

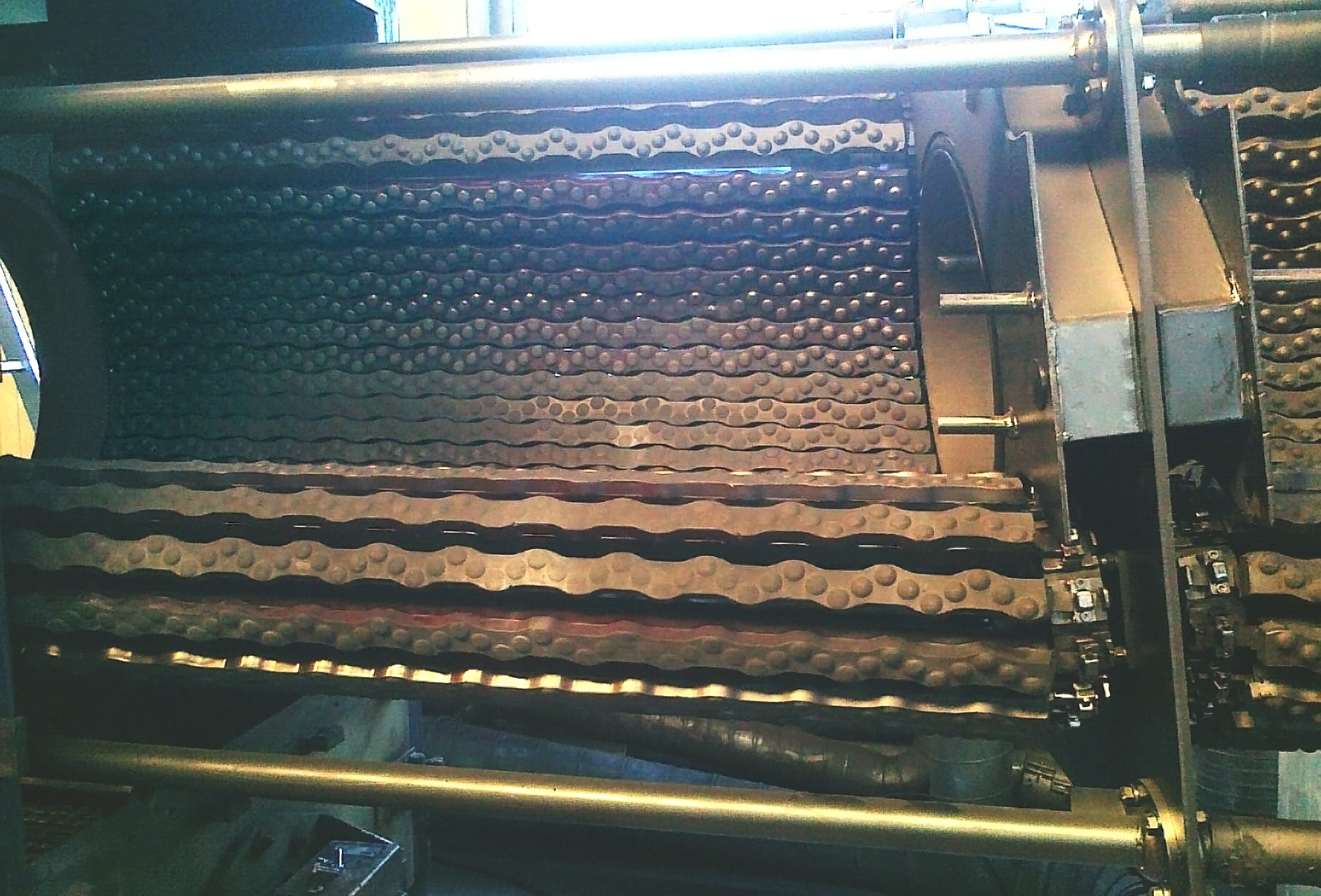

| Machine No. |
180712 |
| OEM |
Walther Trowal |
| Type |
Continuous belt blasting unit |
| Name |
THM 500-2-E |
| Turbines |
2 x, 11 kW |
| Cartridge filter |
optional |
| Age |
1999 |
| Other details |
Pass width x pass height: 500 mm x 500 mm
Installation without a foundation
We are happy to offer a suitable filter system. |

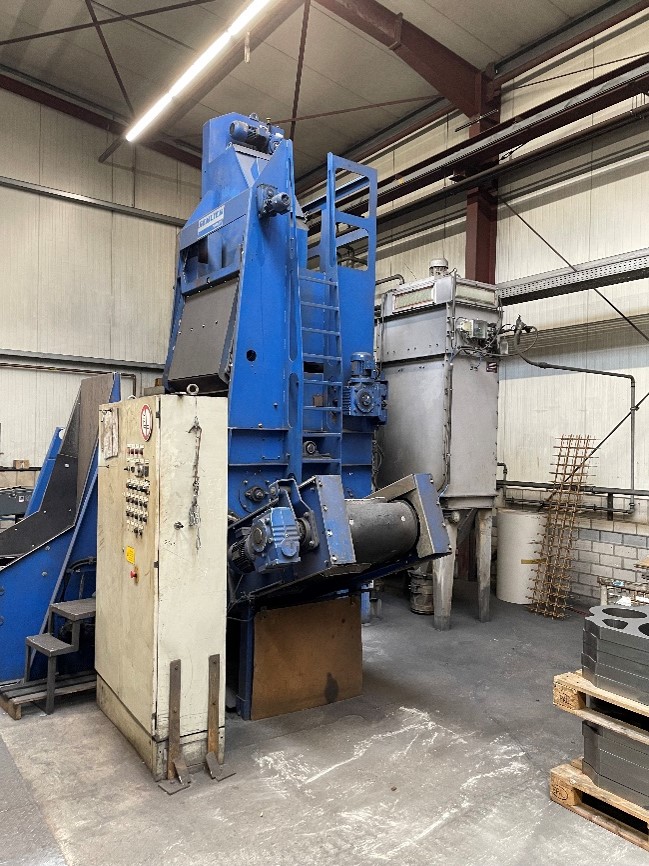

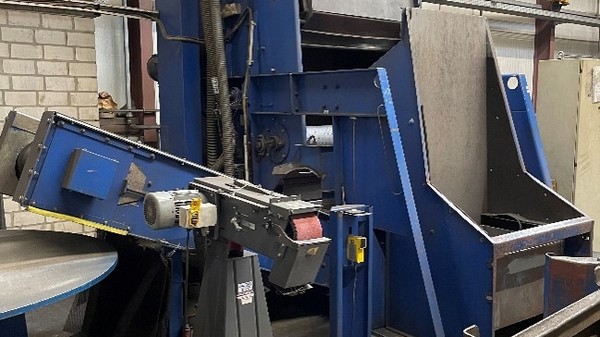

| Machine No. |
180732 |
| OEM |
Rump |
| Type |
Rubber belt tumble blast machine |
| Name |
16-1-1-G |
| Turbines |
1 x new AGTOS Turbine 7,5 kW |
| Cartridge filter |
Used pocket filter with pipeline |
| Age |
1991 |
| Weight workpiece |
15 kW |
| Volume of workpieces |
200 l |
| Weight workp. total |
200 kg |
| Other details |
Operating hours: 12.000
Drum diameter: 900 mm
Wide blasting space: 850 mm
Max. diagonal of work piece: 300 mm
Installation without foundation, including feeder |

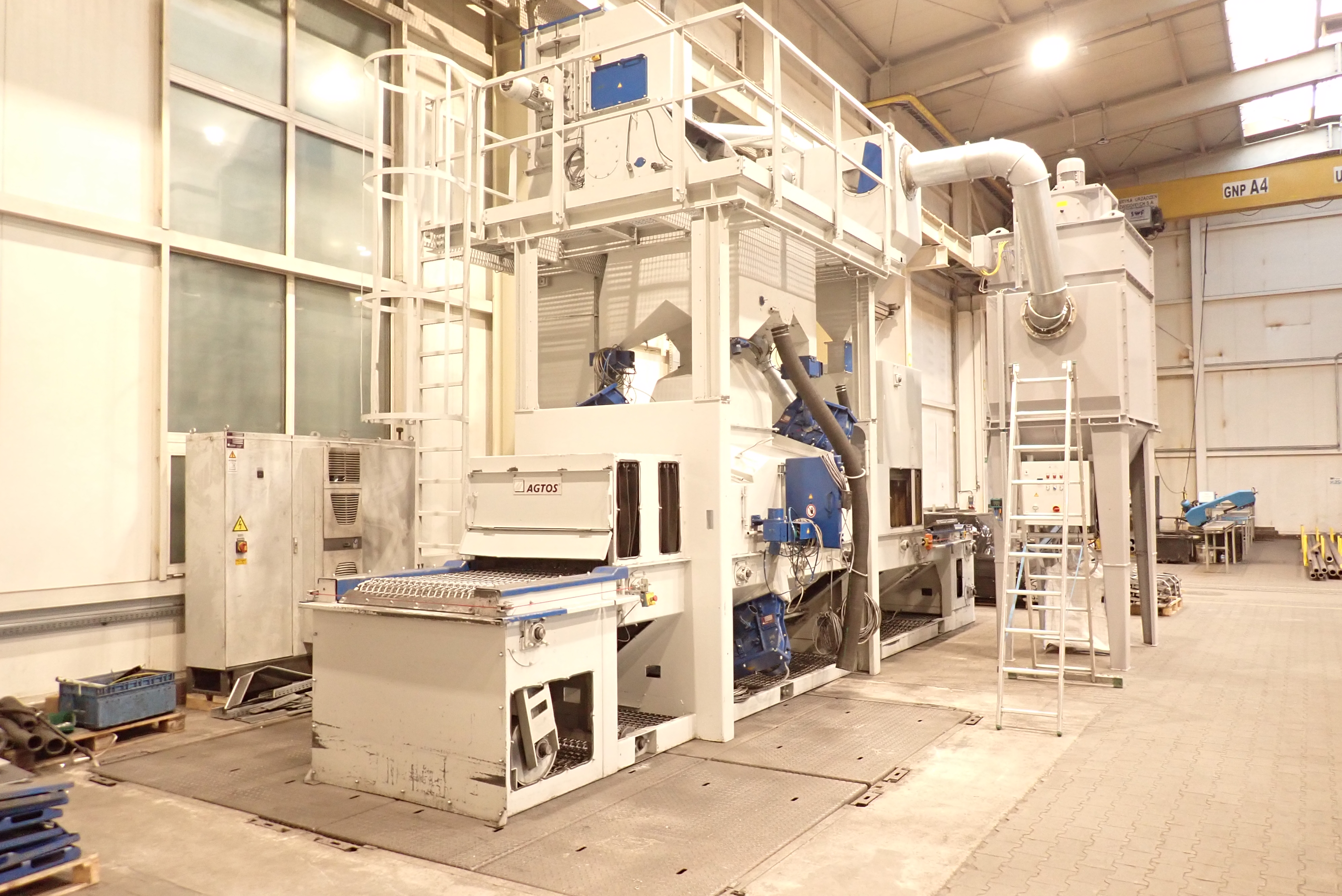

| Machine No. |
180815 |
| OEM |
AGTOS |
| Type |
Continuous overhead rail shot blast machine |
| Name |
DHT 02-03-3.6-04-11 |
| Turbines |
4 x, 11 kW |
| Cartridge filter |
A suitable AGTOS cartridge filter system can be added |
| Age |
2015 |
| Other details |
Control system: Siemens SPS
Passage width x height: 200 mm x 300 mm
Blasting chamber:
Robust construction made of highly wear-resistant manganese steel. In the direct blasting area of the high-performance turbines, easily replaceable, 10 mm thick, wear plates made of manganese steel are also installed.
The ceiling slot is sealed with an easily removable rubber seal, a strip brush and a labyrinth made of highly wear-resistant manganese steel.
The locks are sealed by several rubber lamellae arranged one behind the other.
In addition, the hook area is sealed with brushes from below. |
| Machine No. |
180880 |
| OEM |
Schlick |
| Type |
Roller conveyor blast machine |
| Name |
RB 1500-500-5.2-04-11 |
| Turbines |
4 x, 11 kW |
| Cartridge filter |
included |
| Volume |
7.500 m³/h |
| Age |
1998 |
| Other details |
Operating hours: 12.556
Height of machine: 5.200 mm
Passage width x height: 1.500 mm x 500 mm
Entry and exit roller table each 4 m
Outlet side with funnel and screw.
Role division facility: 400 mm
Roller table: 800 mm |

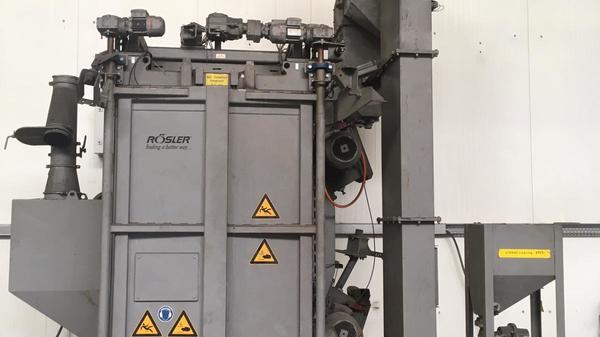

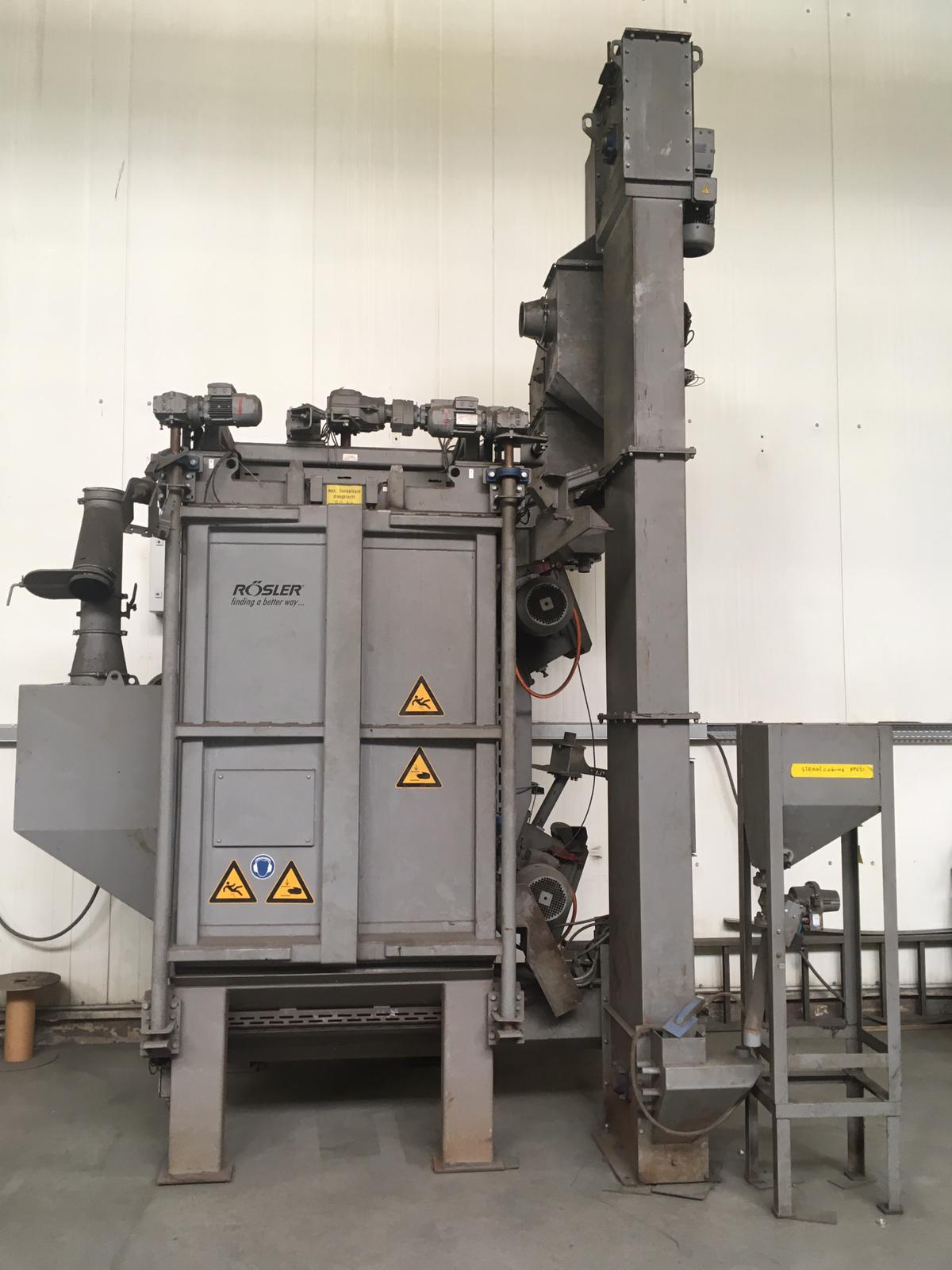

| Machine No. |
180919 |
| OEM |
Rössler |
| Type |
Hanger-type blast machine |
| Name |
RHBE 11/15-HD-SO |
| Turbines |
2 x,15 kW |
| Cartridge filter |
optional |
| Age |
2011 |
| Machine No. |
181041 |
| OEM |
Rump |
| Type |
Hanger-type blast machine |
| Name |
HT 13-E / I |
| Turbines |
2 x, 7,5 kW |
| Cartridge filter |
Without, optionally possible |
| Age |
2004 |
| Weight workpiece |
1.000 kg |
| Other details |
Operating voltage: 400 V, 50 Hz
Control voltage: 24 V.
Height of the machine: 5,700 mm
Max. Workpiece diameter: 1,200 mm
Max. Workpiece height: 1,800 mm
Conveyor with y-switch, 1000 kg max. weight per hook, total connected load 17 kW |
| Machine No. |
181072 |
| OEM |
Rösler |
| Type |
Rubber belt tumble blast machine |
| Name |
RMBC 1.1 |
| Turbines |
1 x, 7,5 kW |
| Cartridge filter |
Wet filter |
| Age |
2009 |
| Volume of workpieces |
max. 100 l |
| Weight workp. total |
300 kg |
| Other details |
Blasting chamber width: 700 mm
System height: 3,790 mm |

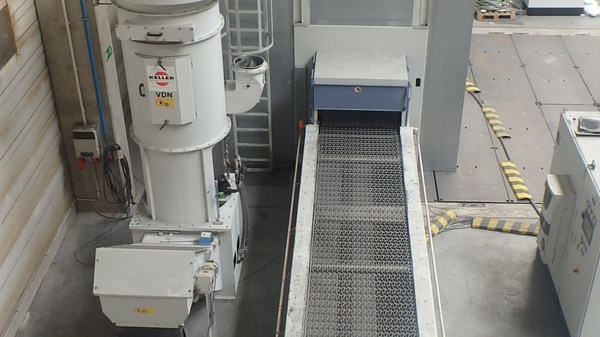

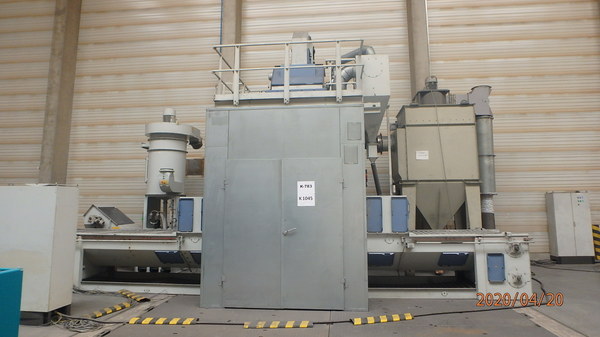

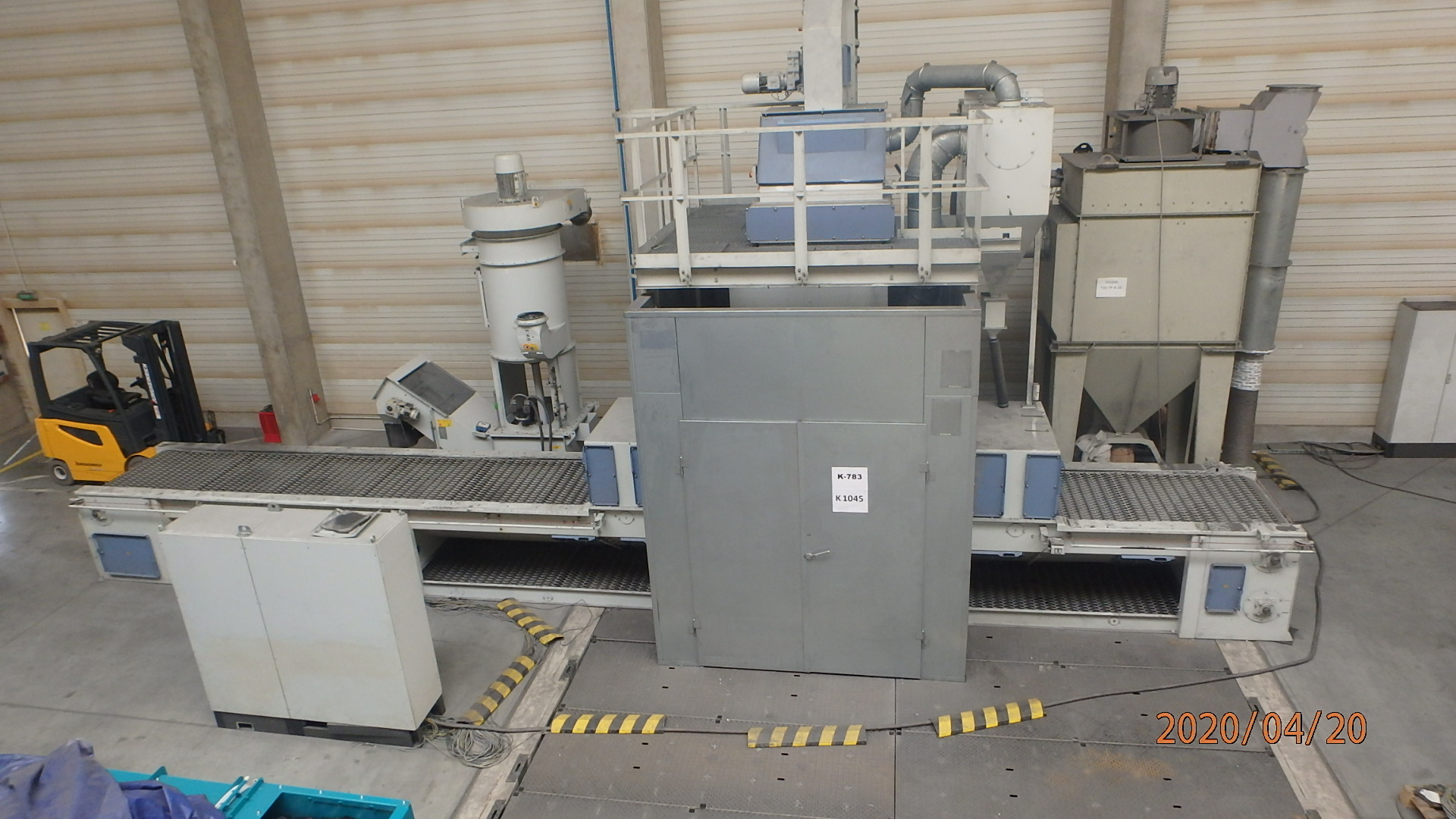

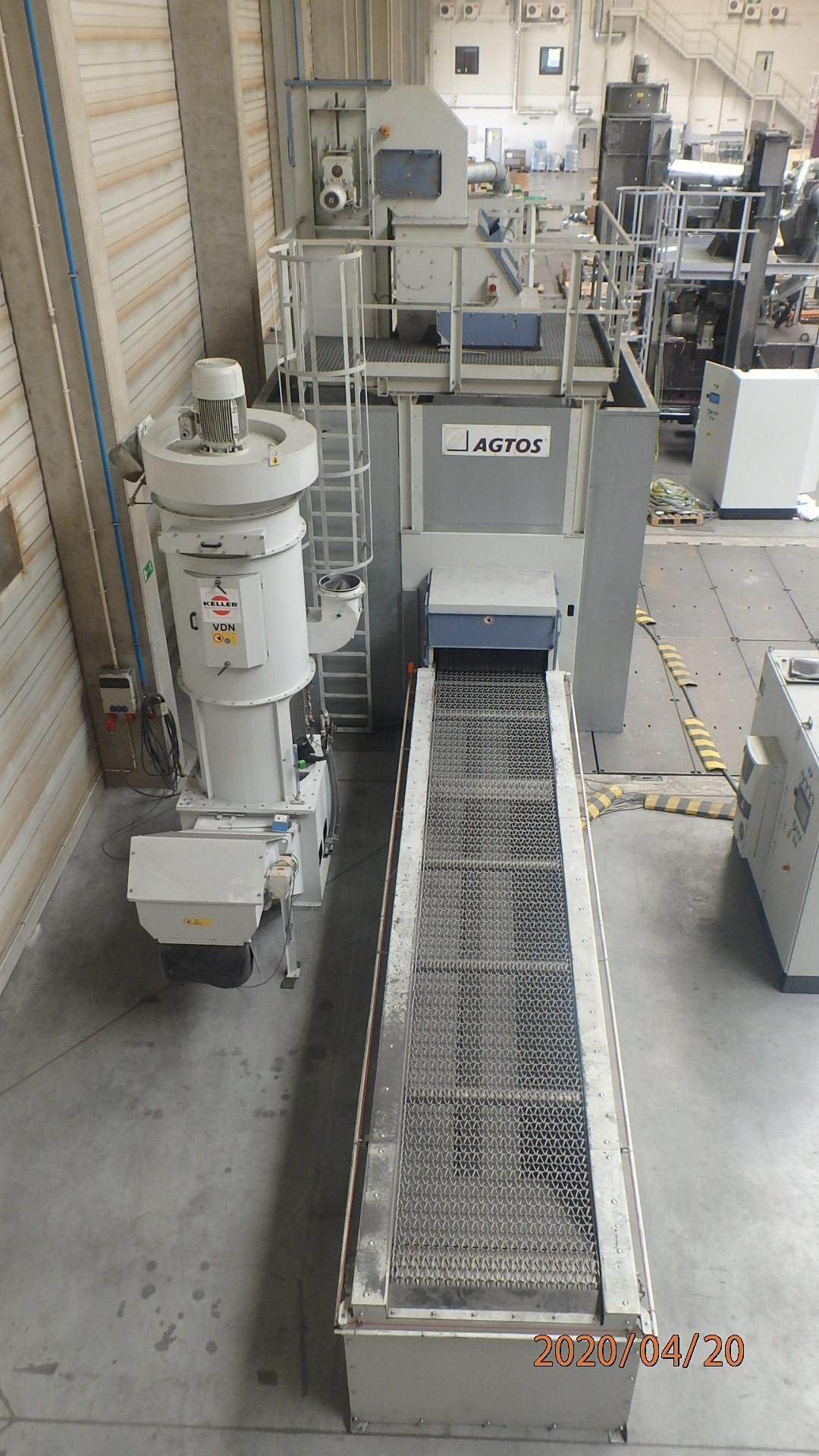

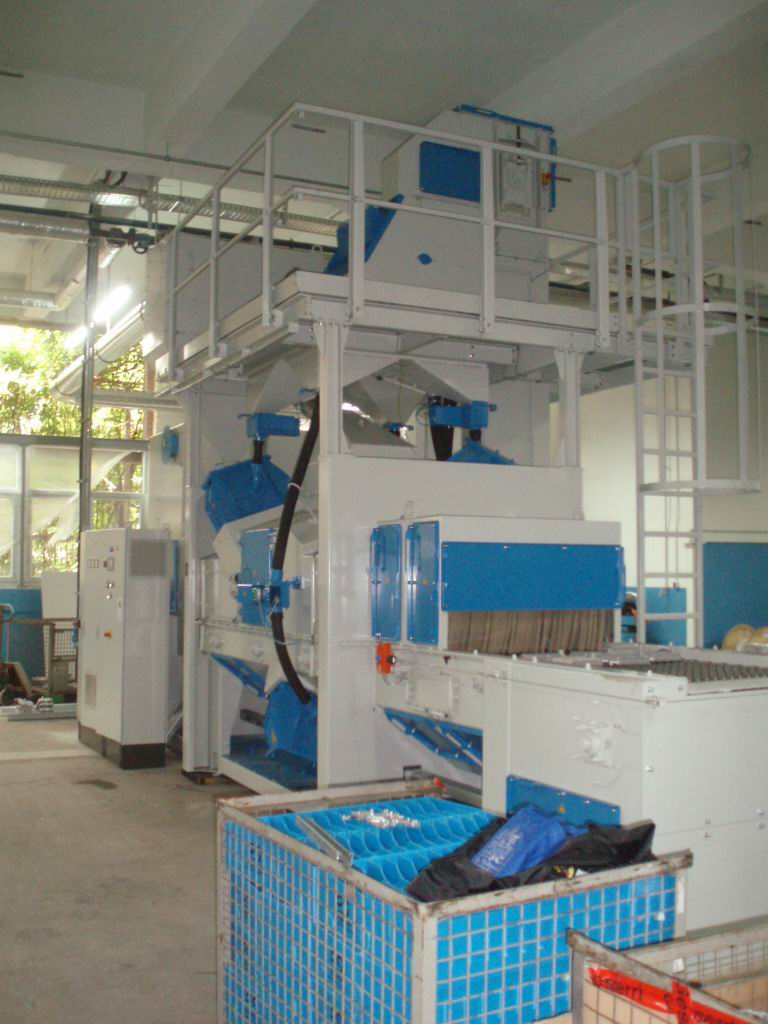

| Machine No. |
181045 |
| OEM |
AGTOS |
| Type |

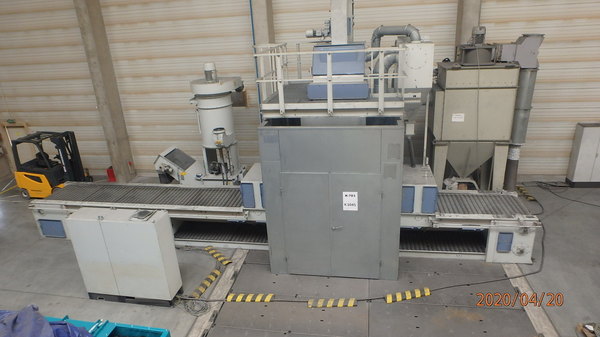

Wire mesh conveyor shot blast machine |
| Name |
BS 10-05-3.6-04-11 |
| Turbines |
4x AGTOs high-performance turbine 3.6, each 11 kW with frequency converter |
| Age |
2015 |
| Other details |
Max. Abrasive throughput approx.: 198 kg / min per turbine
Operating voltage: 400 V, 50 Hz
Control voltage: 230V, 50 Hz, 24 V DC
Max. Workpiece width: 400 mm
Max. Workpiece height: 150 mm
Filter manufacturer: AGTOS
Filter type: optional |
